Chip tuning turbo-diesel engines: why diesels respond better than petrol

Turbo-diesel engines respond to chip tuning better than any other engine type. You can see gains of up to 30% power and 35% torque — significantly more than naturally aspirated or even turbocharged petrol engines.

Why? The way turbo-diesels work makes them particularly well suited to tuning. Here’s what’s actually happening under the bonnet.

Quick history: how turbo-diesels became performance engines

Rudolf Diesel developed his compression-ignition engine in the 1890s, initially running it on vegetable oils and light petroleum products. He originally wanted to use coal dust as fuel. That didn’t work out.

The real breakthrough came in 1898 when Gustav Trinkler built the first high-pressure diesel engine at the Putilov factory in St. Petersburg. This established the fundamental design we still use today.

Turbochargers entered the picture in 1911 when Alfred Büchi patented the design. Initially used in WWI aircraft to maintain power at high altitude, turbochargers didn’t appear in passenger cars until much later. The first turbo-diesel passenger car was the Oldsmobile Cutlass — a reminder that even the Americans got there eventually.

Why does this history matter? Because turbo-diesel technology is mature and well-understood. Engineers have had over a century to refine how these engines work, which means manufacturers know precisely how much performance headroom exists in the hardware.

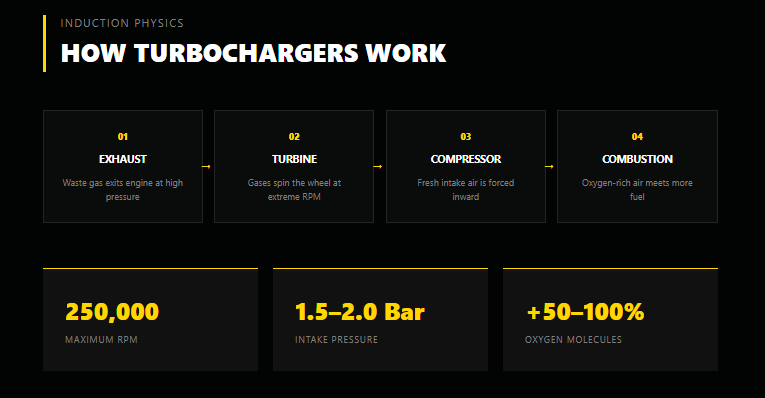

How turbochargers actually work

A turbocharger uses exhaust gases to compress intake air. More air in the cylinders means more fuel can burn, which means more power output.

The process: burning fuel creates high-pressure exhaust gases. These gases exit through the turbine side of the turbocharger, spinning the turbine wheel at up to 250,000 RPM. The turbine wheel is connected by a shaft to the compressor wheel. The compressor spins at the same speed, forcing intake air into the engine at higher pressure than atmospheric.

The result: your engine receives roughly 1.5–2.0 bar of air pressure instead of the standard 1.0 bar. That’s 50–100% more air molecules in each cylinder, which allows burning 50–100% more fuel, producing considerably more power.

The problem is heat. Compressing air generates heat — basic thermodynamics — and hot air is less dense than cool air. That’s why most turbocharged engines include an intercooler, a radiator that cools the compressed air before it enters the engine. Cooler, denser air means more oxygen molecules and better combustion.

Why diesel engines are ideal for turbocharging

Diesel engines work fundamentally differently from petrol engines, and these differences make them particularly suited to both turbocharging and chip tuning.

Diesel advantages for tuning:

Compression ignition means no spark plugs. Diesels ignite fuel purely through compression heat (around 550°C). This means you can run much higher boost pressures without worrying about detonation — the knock that limits petrol engines.

Lean fuel mixture. Diesels always run with excess air, unlike petrol engines that require precise air-fuel ratios. You can add more fuel without running rich, as long as you’re adding proportional boost pressure.

Massive low-end torque. Diesel combustion produces peak torque at much lower RPMs than petrol. Turbocharged diesels often hit maximum torque by 1,500–2,000 RPM — exactly the range where you need it pulling out of a junction or overtaking on a dual carriageway.

Built stronger from the factory. Diesel engines have higher compression ratios (typically 16:1 to 22:1, versus 9:1 to 11:1 for petrol), so they’re built with stronger internals — forged crankshafts, reinforced pistons, heavier connecting rods. They can handle more power without mechanical failure.

Engine type	Typical power gain	Typical torque gain	Why
Turbo-diesel	Up to +30%	Up to +35%	High boost headroom, strong internals
Turbo petrol	Up to +30%	Up to +30%	Boost limited by knock, requires timing retard
Naturally aspirated	Up to +12%	Up to +15%	No boost to increase, limited by displacement

These figures come from GAN Tuning’s testing across 30,000+ vehicles in 8 countries.

How GAN GT works on turbo-diesel engines

GAN GT targets the fuel rail pressure sensor in diesel engines. This sensor tells the ECU how much pressure exists in the fuel system — typically 1,600–2,000 bar in modern common-rail diesels.

The process: the sensor reads actual fuel rail pressure at, say, 1,800 bar. GAN GT intercepts this signal and modifies it downward to 1,500 bar before sending it to the ECU. The ECU thinks pressure is low, so it commands the high-pressure fuel pump to increase pressure. Actual pressure climbs to 2,000 bar.

Higher fuel pressure means finer fuel atomisation and the ability to inject more fuel per stroke. Combined with the turbocharger already providing excess air, this produces more power.

The critical safety point: factory protection systems stay active throughout. If exhaust gas temperature climbs too high, the factory ECU still limits fuel. If turbo boost exceeds safe levels, the factory wastegate still opens to bleed off pressure. GAN modules work within these safety parameters — they request more performance, but the factory ECU retains the final say if conditions become unsafe.

Engineers with over 20 years of calibration experience designed the GAN GT specifically for turbo-diesel engines. The module is calibrated to the safe operating limits for fuel pressure, boost pressure, and exhaust gas temperature, and stays within them.

Real-world performance gains on turbo-diesels

The gains from chip tuning turbo-diesels are substantial and immediately noticeable on UK roads.

Typical results from GAN GT on common turbo-diesel engines:

• VW/Audi 2.0 TDI (140 HP stock): +40 HP, +80 Nm torque
• BMW 2.0d (184 HP stock): +45 HP, +90 Nm torque
• Mercedes 2.2 CDI (170 HP stock): +50 HP, +100 Nm torque
• Ford 2.0 TDCi (150 HP stock): +40 HP, +85 Nm torque

These aren’t theoretical figures — they’re measured on dynamometers with real vehicles.

The torque increase is particularly noticeable in everyday driving. Before tuning, you might need to drop from sixth to fourth gear to overtake someone on the motorway. After tuning, you can pull away in sixth gear from 1,800 RPM. The extra torque simply pulls you forward without dropping gears — which is rather the point.

Question: Why do turbo-diesels gain more than turbocharged petrol engines?

Answer: Diesel engines can safely run higher boost pressures without knock (detonation), and they always operate with excess air, so adding fuel doesn’t create a dangerously rich mixture. Petrol engines are limited by knock — add too much boost and the engine begins damaging itself. Diesels don’t have this limitation because they use compression ignition, not spark ignition.

Question: Will increased fuel pressure damage my diesel engine’s fuel system?

Answer: GAN GT stays within the mechanical limits of factory fuel system components. Modern common-rail diesel systems are rated for pressures exceeding 2,200 bar, but manufacturers limit them to 1,600–1,800 bar for longevity. GAN Tuning typically increases to 1,900–2,000 bar — well within component specifications. That’s why they can offer a €5,000 engine guarantee for 2 years.

Fuel economy benefits specific to turbo-diesels

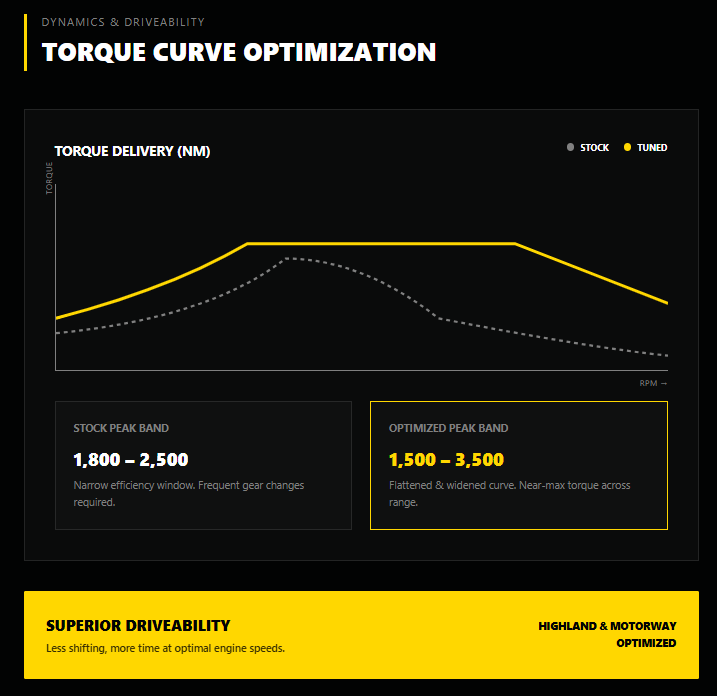

Turbo-diesels see fuel economy improvements more consistently than petrol engines when chip tuned, for a specific reason: torque curve optimisation.

Stock turbo-diesels often have a narrow torque peak — maximum torque available in a small RPM range, say 1,800–2,500 RPM. Outside this range, torque drops off, meaning you’re constantly shifting to keep the engine in its power band. On a run up the M6 or across the Scottish Highlands, this becomes rather tiresome.

After tuning, the torque curve flattens and widens. You might have near-maximum torque from 1,500 RPM all the way to 3,500 RPM. This means fewer gear changes, more time at optimal engine speeds, and better overall efficiency.

Real fuel economy data from GAN Tuning testing:

• Motorway driving (constant speed): 10–15% improvement
• Mixed A-road/motorway: 8–12% improvement
• Town driving (conservative): 5–8% improvement
• Aggressive driving: 0–5% improvement

The improvement comes from staying in higher gears at lower RPMs whilst still having adequate power for acceleration. Less time at high RPM means less fuel consumption — and with diesel prices where they are, that adds up.

Commercial diesel operators — Ford Transit and Mercedes Sprinter fleets, for instance — running motorway routes see the biggest benefits. Fleet testing shows some vehicles achieving meaningful savings over thousands of miles, which is significant when you’re running a van full-time.

Installation and reversibility

GAN GT connects either via the OBD-II port or directly to the fuel pressure sensor, depending on your specific vehicle. Installation takes approximately 15 minutes with no special tools required.

The module is completely reversible. Remove it via the smartphone app in under 60 seconds and the factory ECU returns to stock behaviour instantly. No software changes, no permanent modifications, zero trace in ECU memory.

This reversibility is particularly important for diesel owners who use their vehicles commercially or under warranty — and, crucially, for anyone conscious of insurance implications. Performance modifications in the UK must be declared to your insurer; a permanent ECU remap triggers that obligation immediately. An external module that leaves no trace on the ECU puts you in a fundamentally different position.

Remove the module before service appointments, reinstall after. The dealer cannot detect anything in the ECU’s diagnostic logs. Compare this to ECU remapping, which permanently modifies the factory software and leaves traces that dealers can easily identify during diagnostics.

Why manufacturers limit turbo-diesel performance

If turbo-diesels can safely handle 30% more power, why don’t manufacturers tune them that way from the factory?

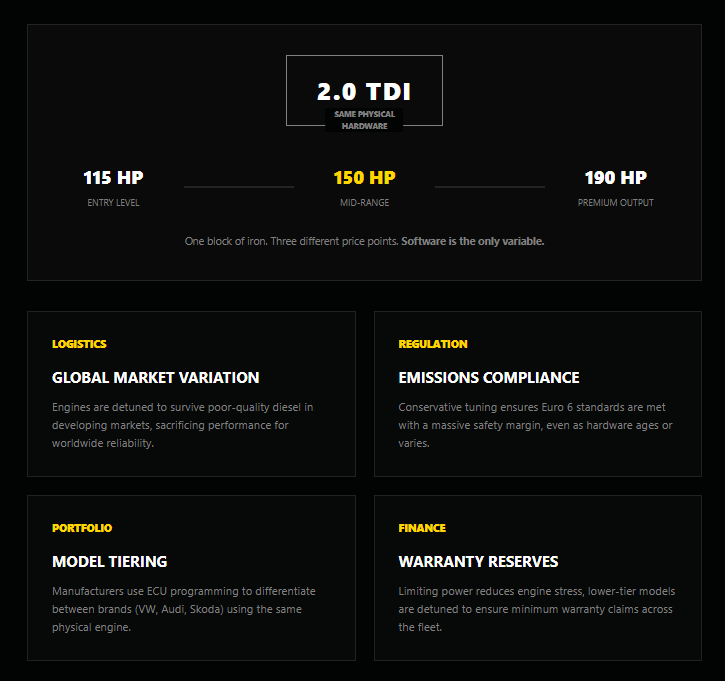

Model differentiation. The same 2.0 TDI engine appears in VW, Audi, Skoda, and SEAT models with power outputs ranging from 115 HP to 190 HP. It’s the exact same physical engine — just different ECU programming. Manufacturers use software to create entire model lineups from a single block of iron.

Global market requirements. One engine has to work in countries with poor-quality diesel and also in markets with ultra-low sulphur diesel. Conservative tuning ensures reliability everywhere.

Emissions regulations. Higher power often means slightly higher NOx emissions. Manufacturers tune conservatively to meet standards with margin for variability — a consideration that remains relevant in the UK even post-Brexit, given the continued influence of Euro 6 standards on UK type-approval.

Warranty costs. Programme the engine to maximum power and you’ll see more warranty claims from drivers who push it hard. Conservative tuning reduces those expenses.

All these factors mean manufacturers typically use 70–75% of the hardware’s capability. The remaining 25–30% is performance headroom that chip tuning unlocks.

The bottom line on turbo-diesel chip tuning

Turbo-diesel engines are the best candidates for chip tuning because:

• They have the most performance headroom built into the hardware
• Compression ignition allows higher boost without knock concerns
• Strong factory internals handle increased power safely
• Fuel economy typically improves rather than worsens
• Torque gains make everyday driving noticeably better

GAN Tuning’s results across 30,000+ vehicles show consistent, reliable performance gains without compromising engine longevity. The €5,000 engine guarantee backs this up — they wouldn’t offer it if turbo-diesels couldn’t safely handle the power increase.

If you’re driving a turbo-diesel and want more performance, chip tuning delivers better results than any other modification you could make. The results, as they say, speak for themselves.
